Description

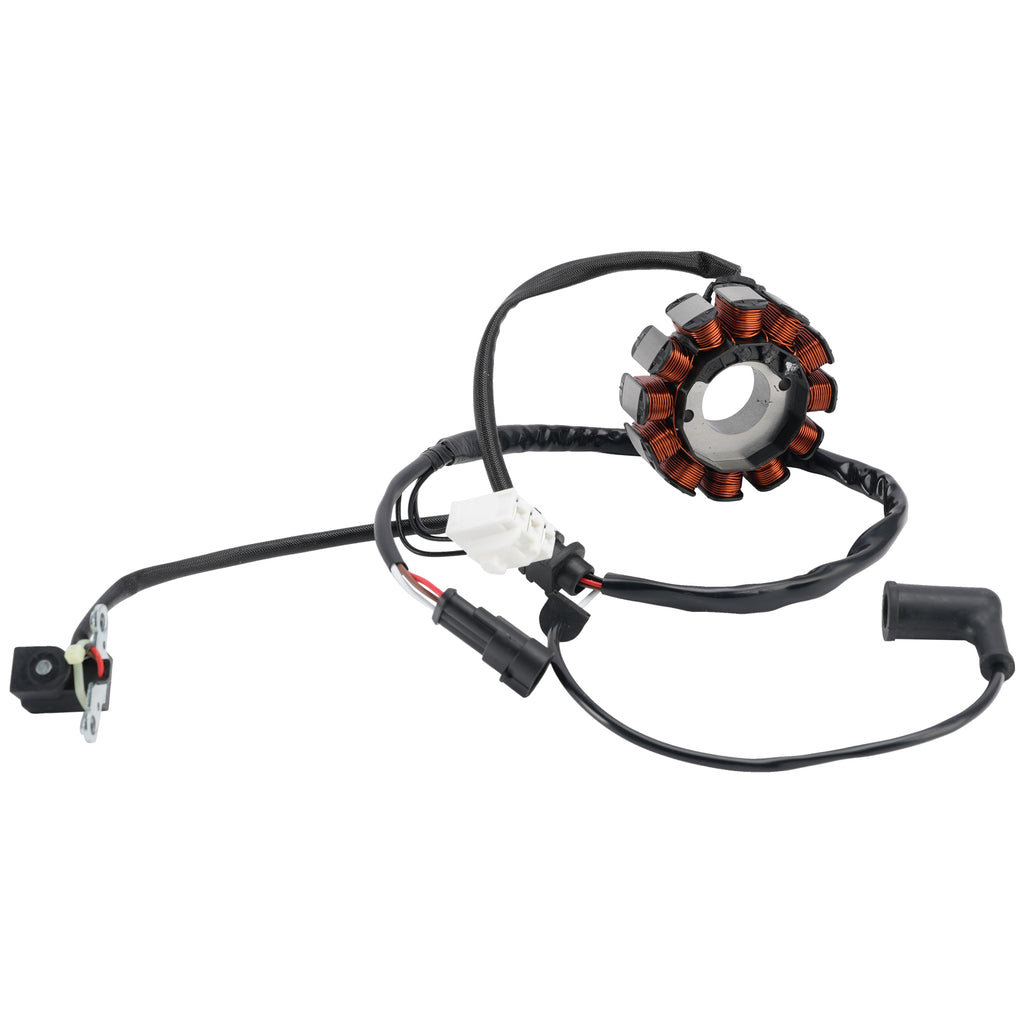

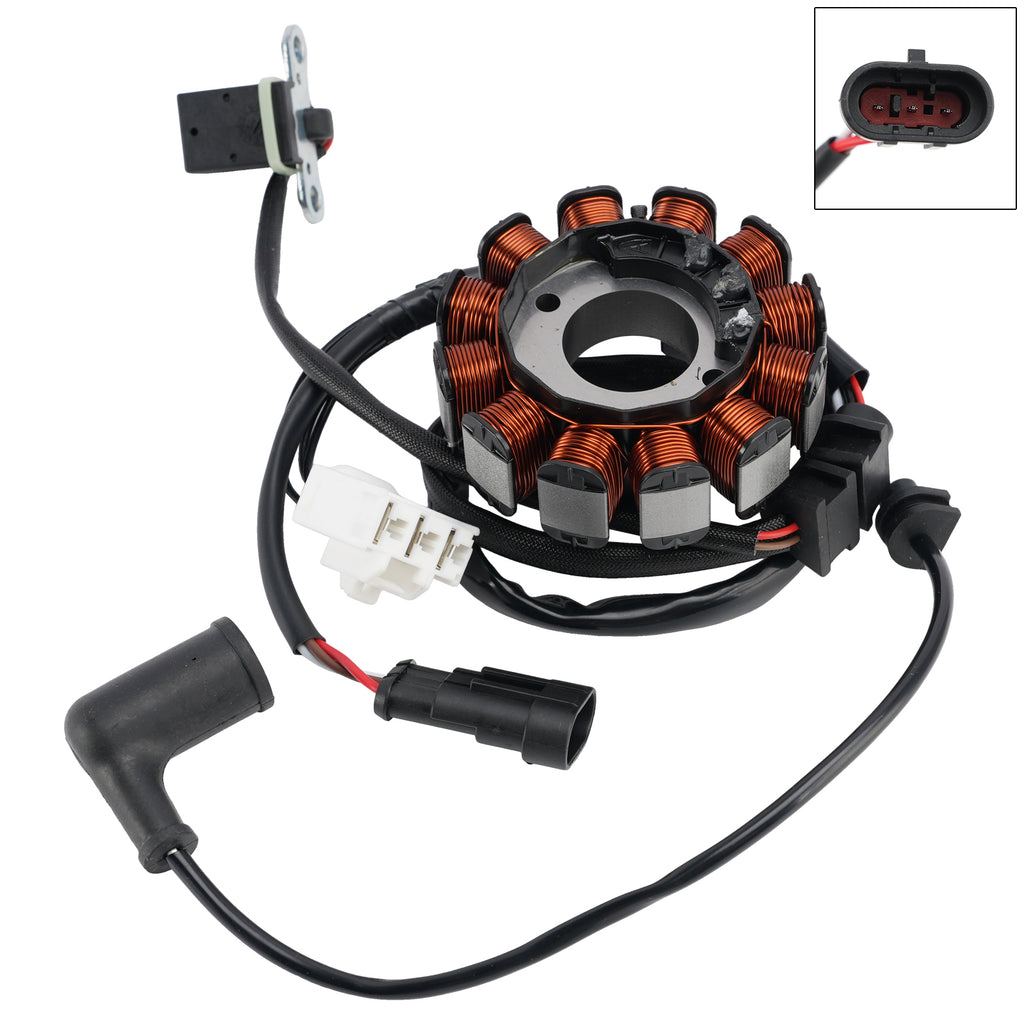

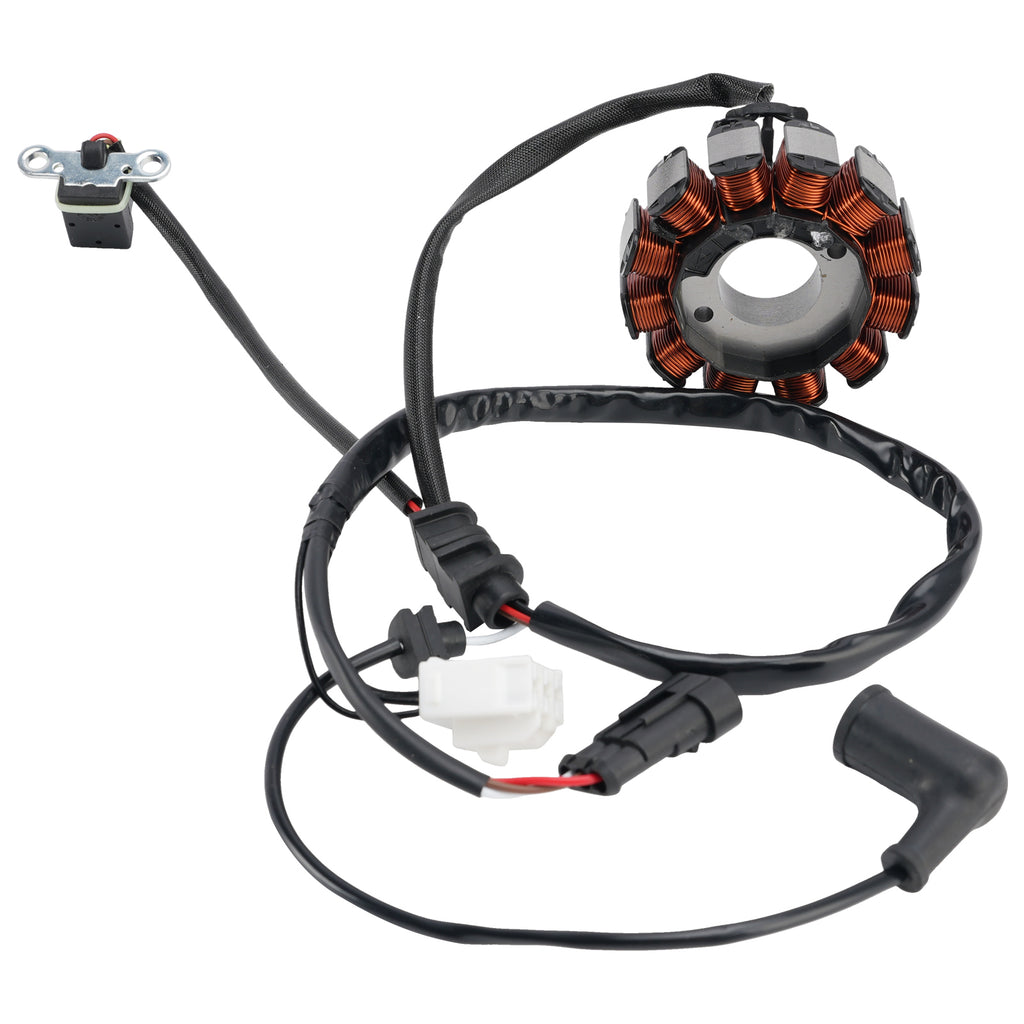

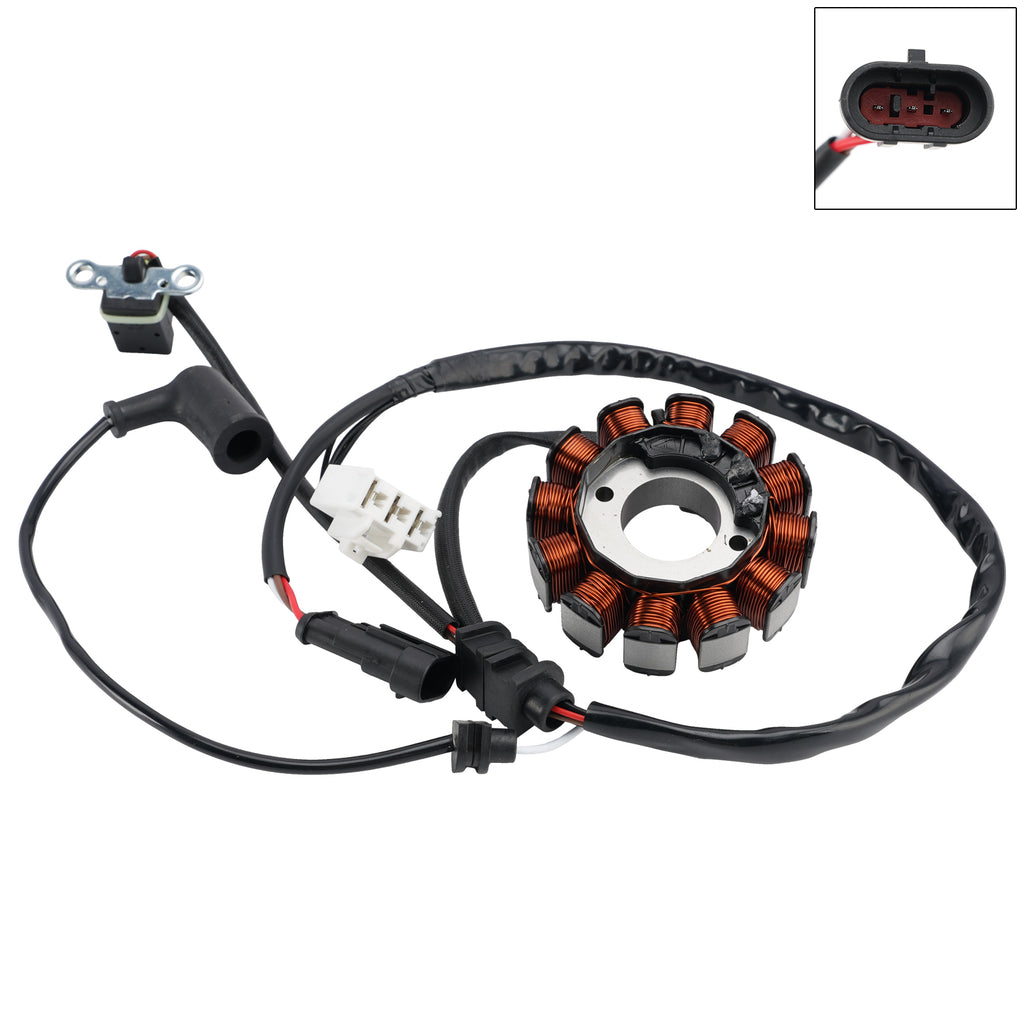

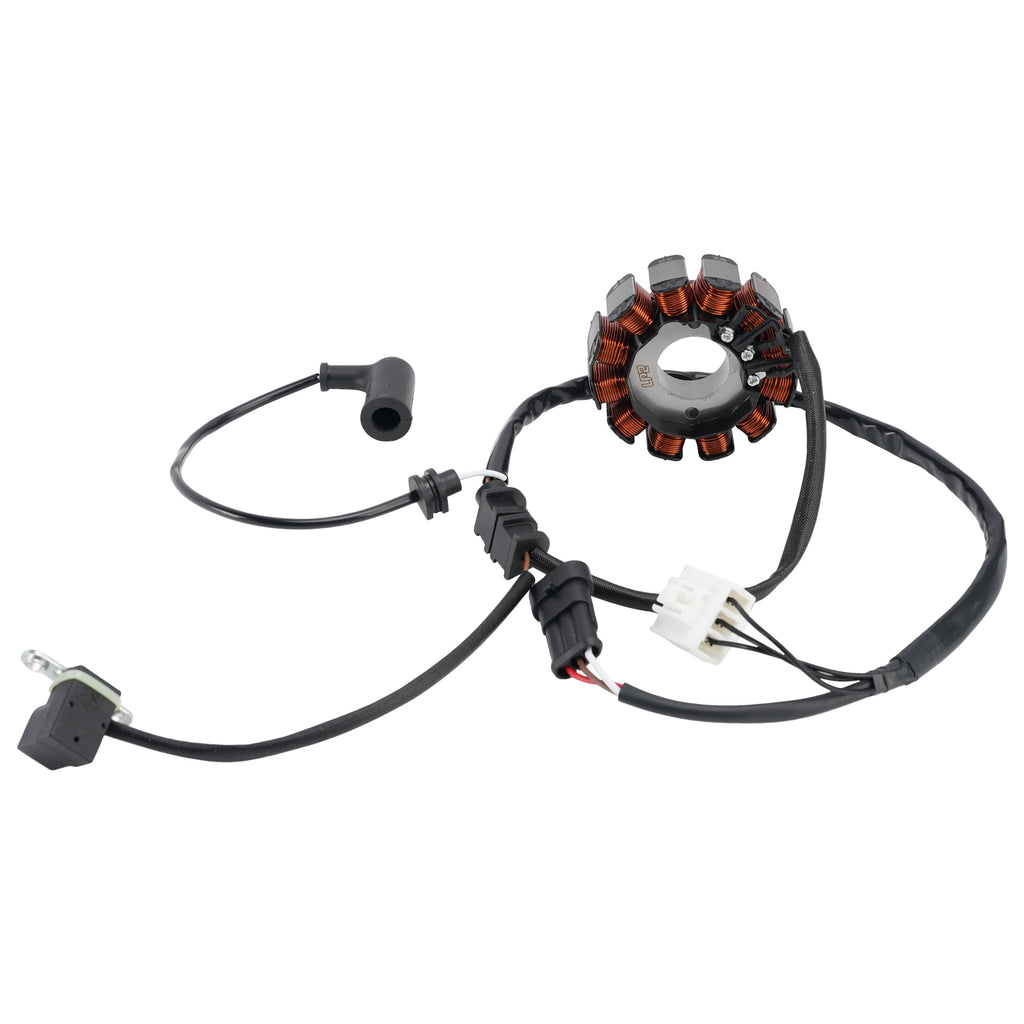

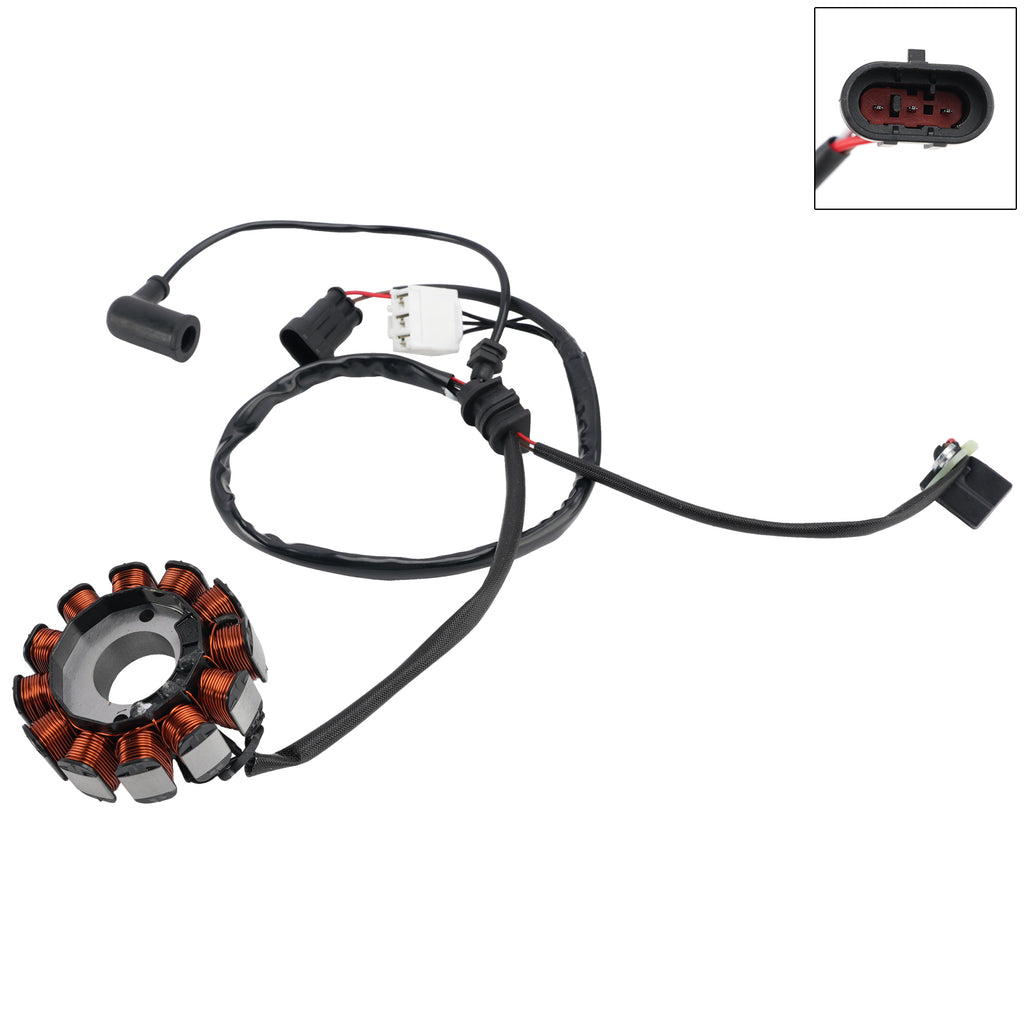

Generator stator magnet for Piaggio Vespa LX 125 150 LX125 LX150 LXV S 2012–2016
Characteristics:
Direct replacement for your original part
High-quality laminating materials
pulse generator coil included
Plug included
Rubber seal included
All shipped products have been inspected.
Specifications:
Condition: 100% new
Type: Stator coil
Further specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6

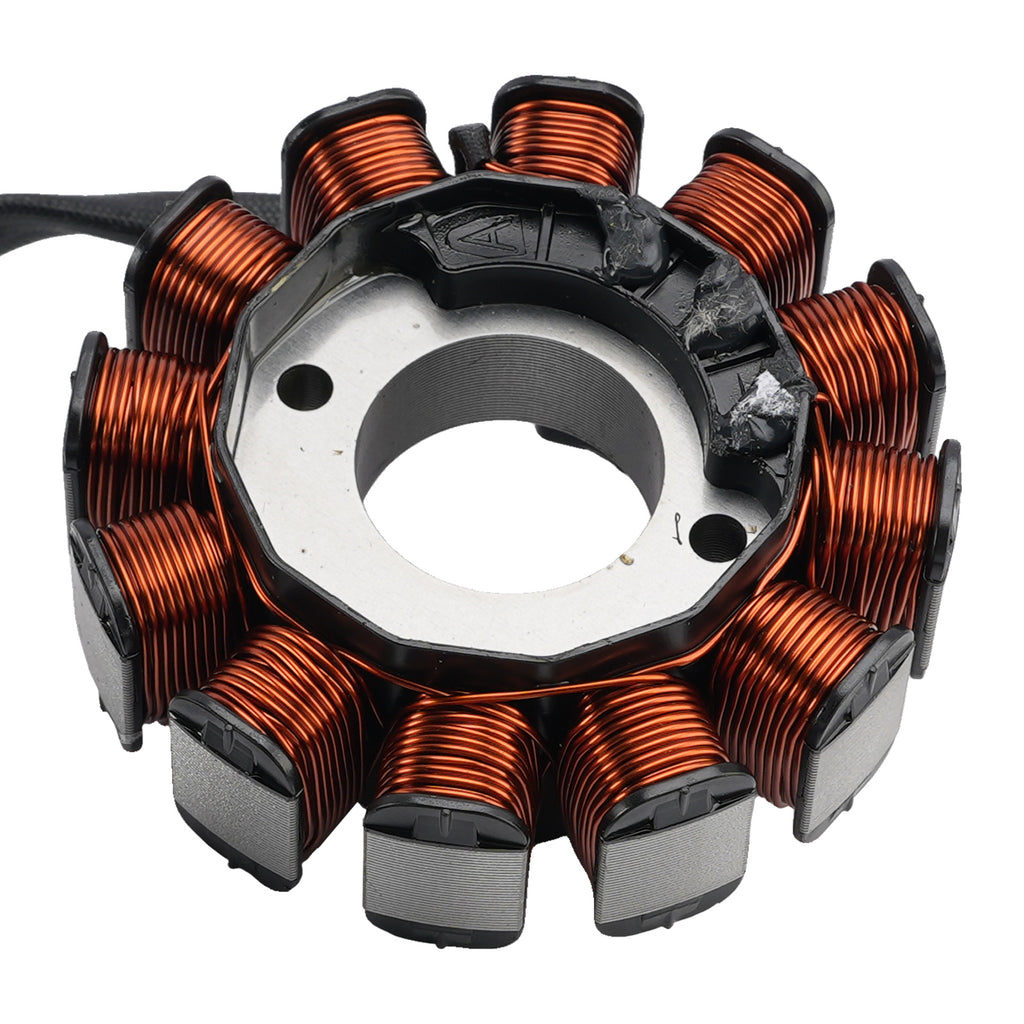

Number of poles: 12
Inner diameter: 32 mm
Outer diameter: 84 mm
Please compare the number of pins and connectors with the old part before purchasing.
Part number:
B016543
(Always compare the part numbers with your exploded views and use cross-references where appropriate.)
(This is NOT an original part. The OEM part numbers provided are for product identification and comparison purposes only.)
Suitable for make/model/year:
Piaggio Fly 125 4T 3V (2012-2016)
Piaggio Fly 150 3V (2013-2019)
Piaggio Liberty 125 4T 3V (2013-2015)
Piaggio Liberty 150 4T 3V (2013-2015)
Vespa LX 125 4T 3V (2012-2016)
Vespa LX 150 3V (2012–2013)
Vespa S 125 3V 2012–2013
For Vespa S 150 3V ie 2012-2014

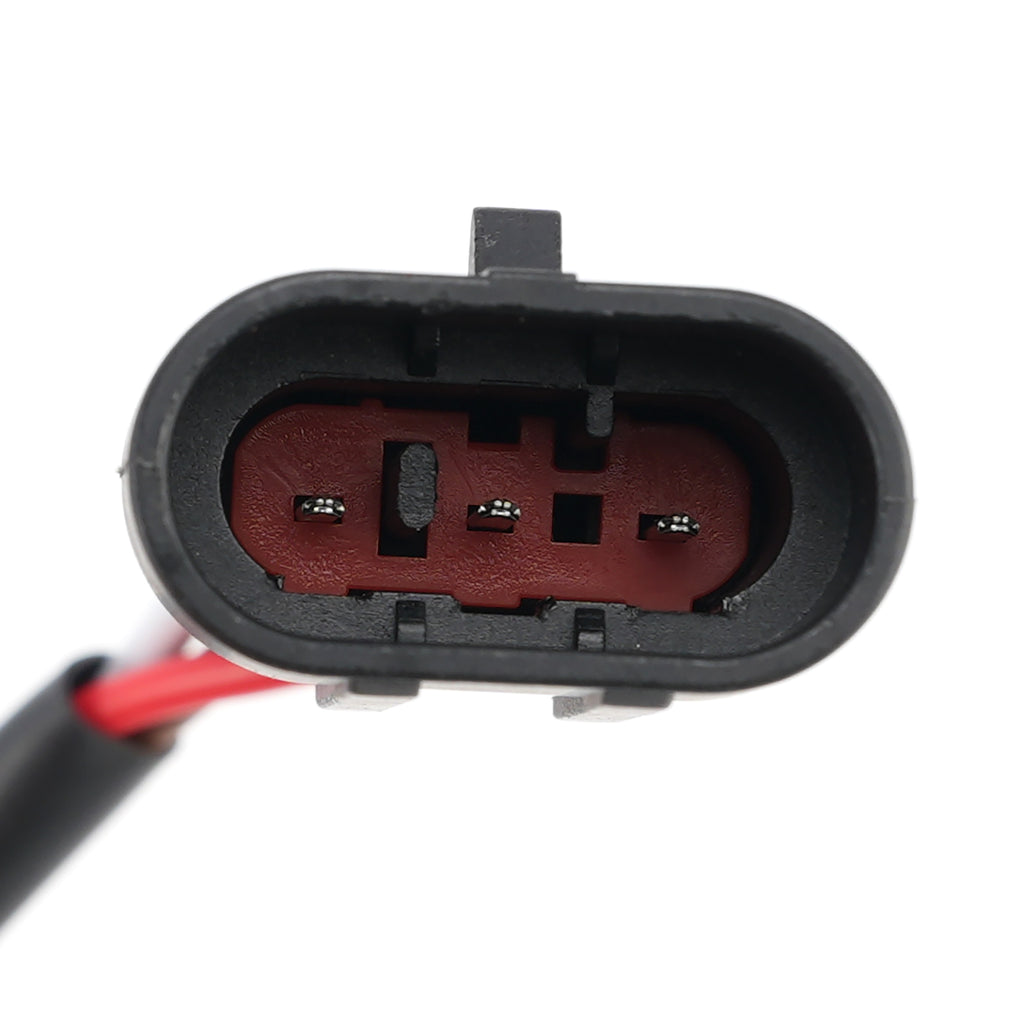

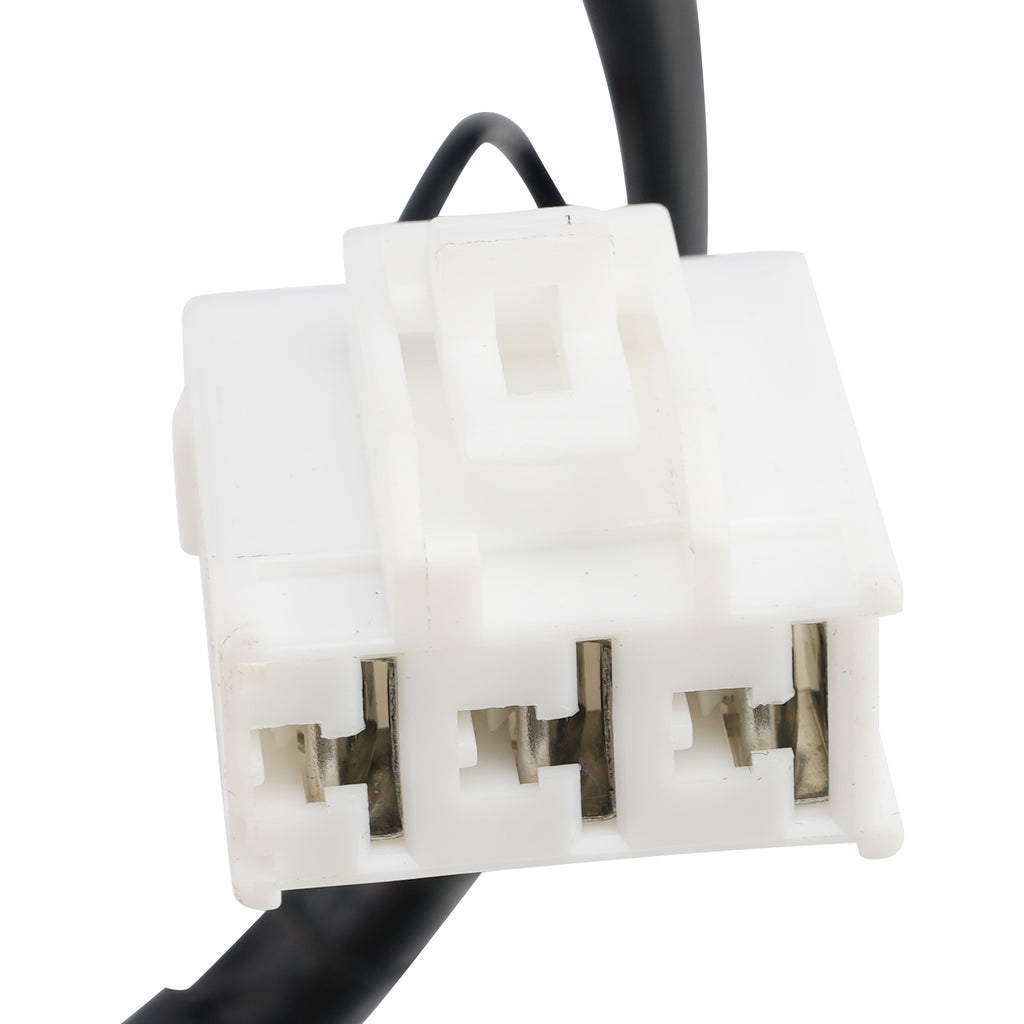

Before purchasing, please check that the number of stator poles matches ours and that your connectors and wiring harness match the picture.
(Compatibility table is for reference only!)
(Please compare your defective component with the image we have provided to check compatibility.)
Scope of delivery:
1x Stator generator
(The product contains all parts shown.)
A NOTICE:
Threading the cable gland: The cables can be pulled through the cable gland individually. A little lubricant makes this easier.
Before installing the new stator:
Check the AC output voltage of the stator.
Replace all burnt or corroded connections on the stator and regulator/rectifier.
Check and repair any damaged cables.
Use high-temperature dielectric grease on all connections.
Our stator may use a different cable color coding than your original.
All cables are connected in the correct order; please do not change the wiring.
This stator is designed as a direct replacement and should be used as such.
Always use threadlocker when screwing on the stator.
If our stator contains a pickup coil, be sure to ensure the correct air gap during installation.
All product images are accurate; if in doubt, compare our product with your original part.
The battery's condition is important. No stator can replace a weak or defective battery. If in doubt, charge your battery and have it subjected to a load test, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY!
The product offered is an accessory or spare part and therefore not an original part from the vehicle manufacturer.
The name of the vehicle manufacturer is only given to identify the product offered as an accessory or spare part, in order to clarify for which vehicle the offered product is suitable.
