Description
Generator-stator-regulator-rectifier gasket set for TGB BLADE TARGET 425/525/550/600
Characteristics:
The set includes stator, regulator-rectifier and gasket.
Meets or exceeds OEM quality; direct replacement for your original part.
Perfect fit and ready to install immediately.
Always use sealant for the cable gland.
Assembly instructions are not included.
Danger:
One of the most common reasons for stator failure is a defective regulator, which damages the stator within a very short time.
Therefore, we strongly recommend replacing both parts. Technically modified stators are excluded from exchange.
Specifications:
Condition: 100% new (aftermarket)
Type: Stator and regulator kit
Further specifications:

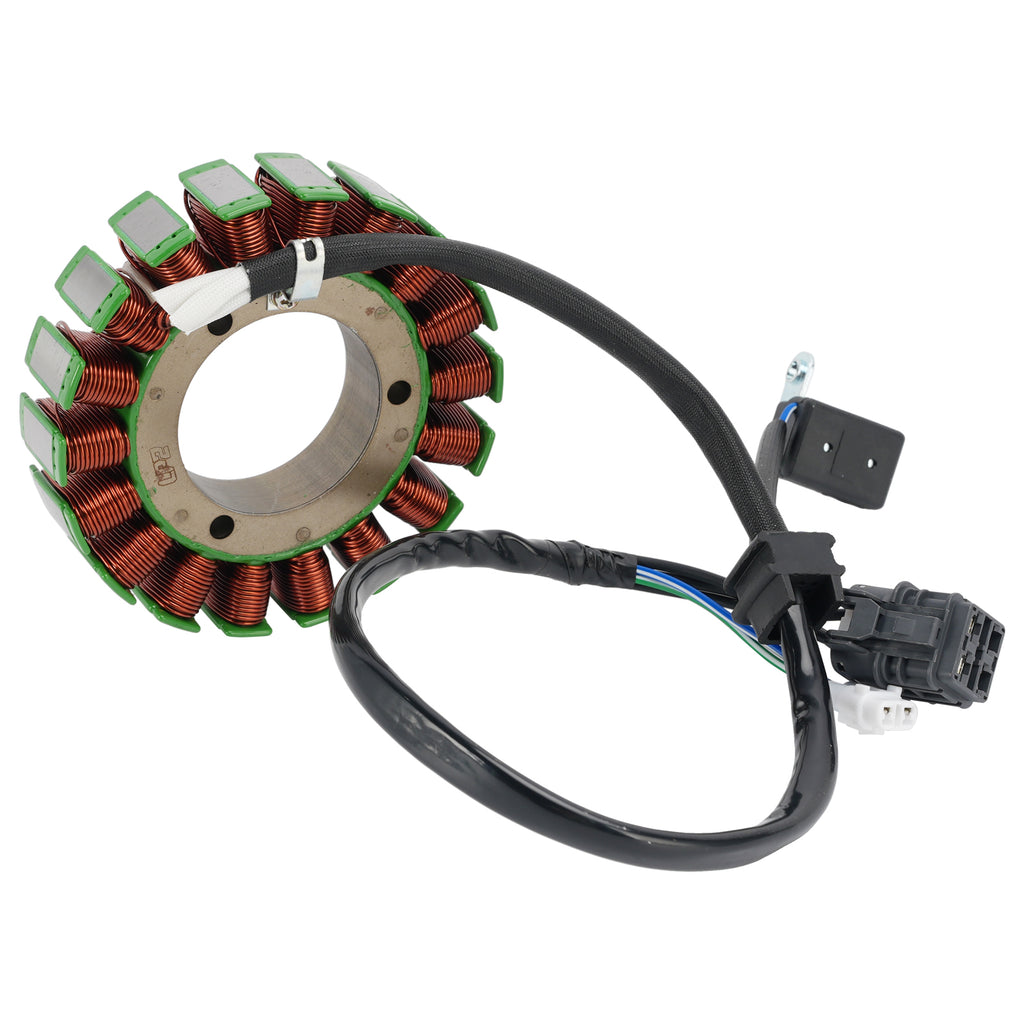

stator
Number of wires: 5
Number of plugs: 2
Number of pins: 3 + 2
Number of mounting holes: 3
Number of poles: 18
Inner diameter: 54 mm
Outer diameter: 115 mm

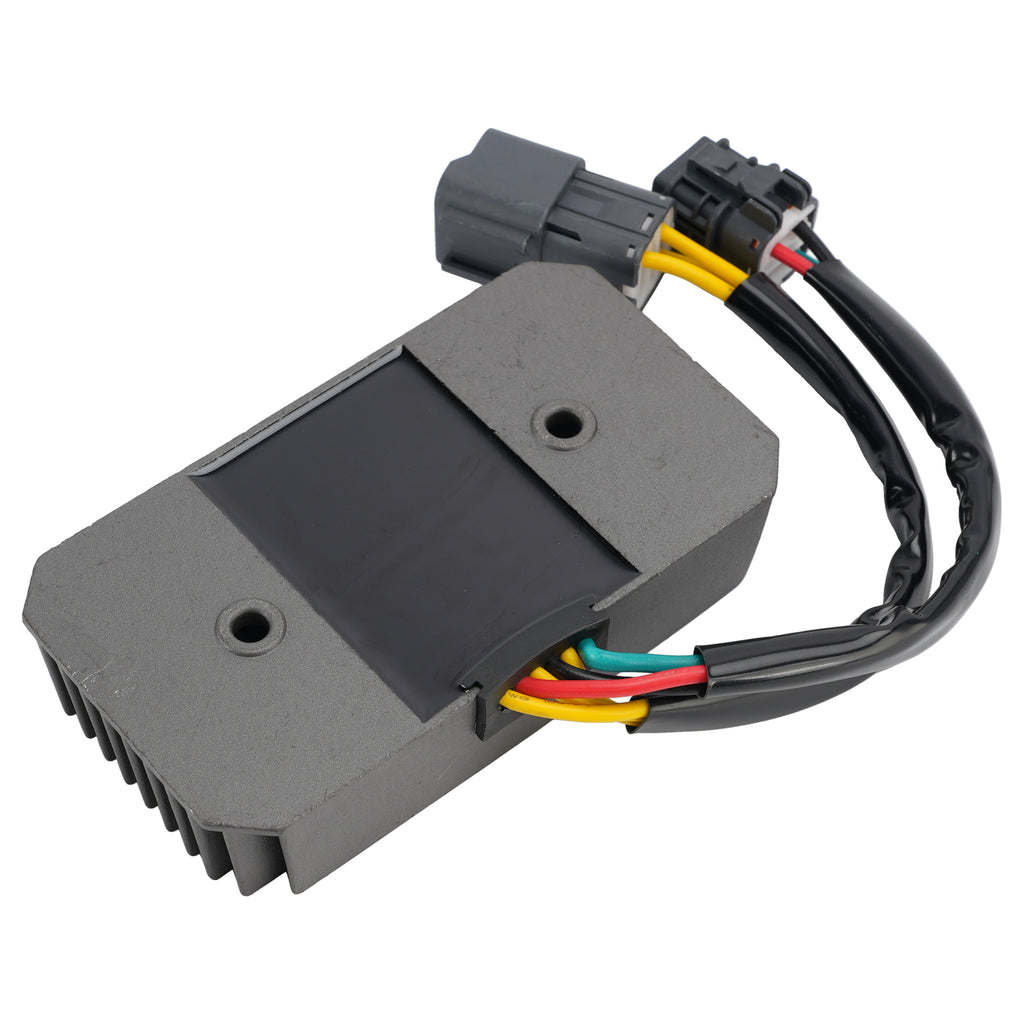

regulator
Number of wires: 6
Number of plugs: 2
Number of pins: 3 + 3
Please carefully inspect your stator assembly and compare the appearance of the stator closely before ordering.
Part number:
Stator assembly: 924415, 924415E
Rectifier, regulator: AG-925803, 925803, AG-926747, 926747

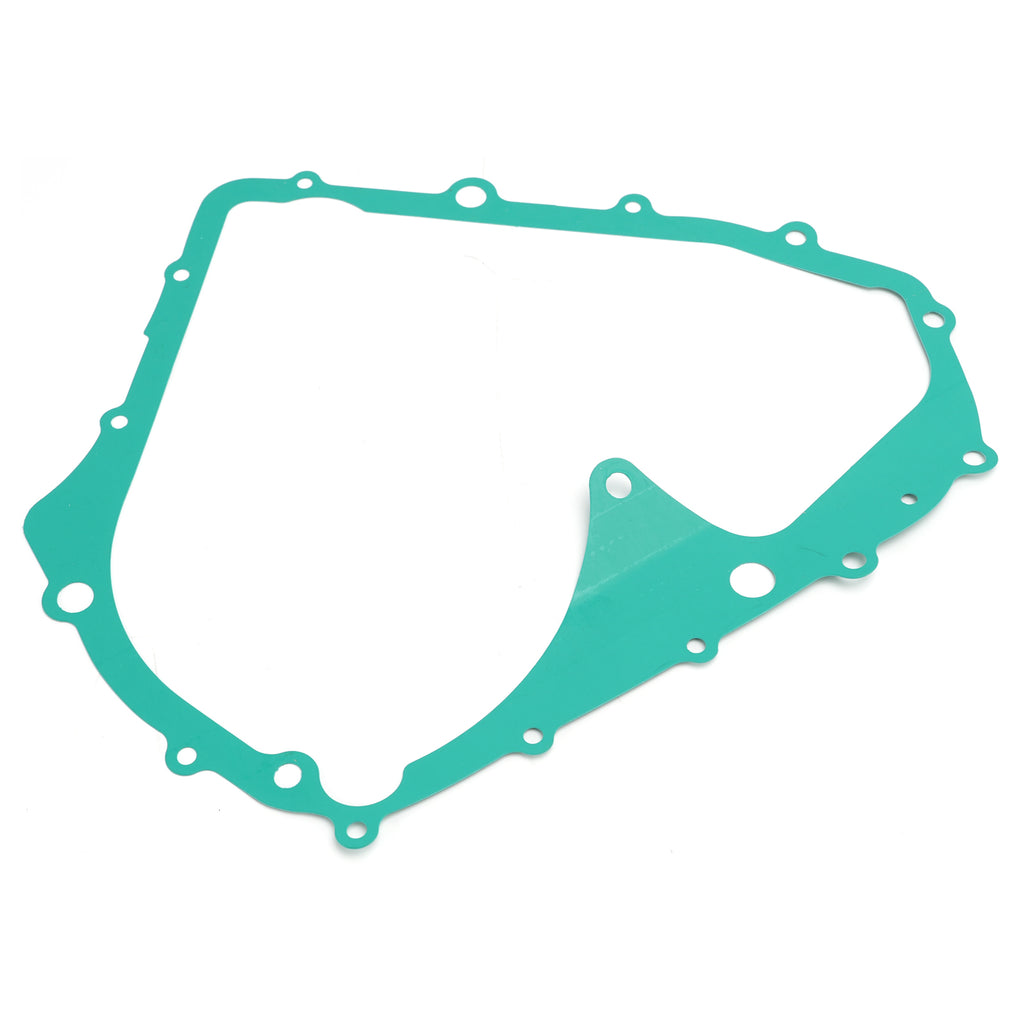

Gasket, generator cover: AG-924055, 924055
(Always compare the part numbers with your parts diagrams and refer to them accordingly.)
(This is NOT an original part. The OEM part numbers are used for identification and comparison of the product type only.)
Suitable for make/model/year of manufacture:
Suitable for TGB Blade 425
Suitable for TGB Blade 550
Suitable for TGB Blade 550 EFI FL
Suitable for TGB Blade 550 EFI LT
Suitable for TGB Blade 550 EFI
Suitable for TGB Blade 550 LT
Suitable for TGB Blade 550i IRS 14
Suitable for TGB Blade 550i LT FL
Suitable for TGB Blade 600 EFi LT
Suitable for TGB Blade 600LTX EURO 4
Suitable for TGB Blade 600LTX T3b
Suitable for TGB Target 425
Suitable for TGB Target 525
Suitable for TGB Target 550 EFI iRS
Suitable for TGB Target 550 iRS
Suitable for TGB Target 550i Sniper
Suitable for TGB Target 600 EFi (T3)
Suitable for TGB Target 600 EURO 4 (VSH-DE)
Double-check your stator assembly and carefully compare how the stator looks before placing an order.
(Compatibility table is for reference ONLY!!!)
(Please compare your defective device with the image we have provided to determine the compatible models.)

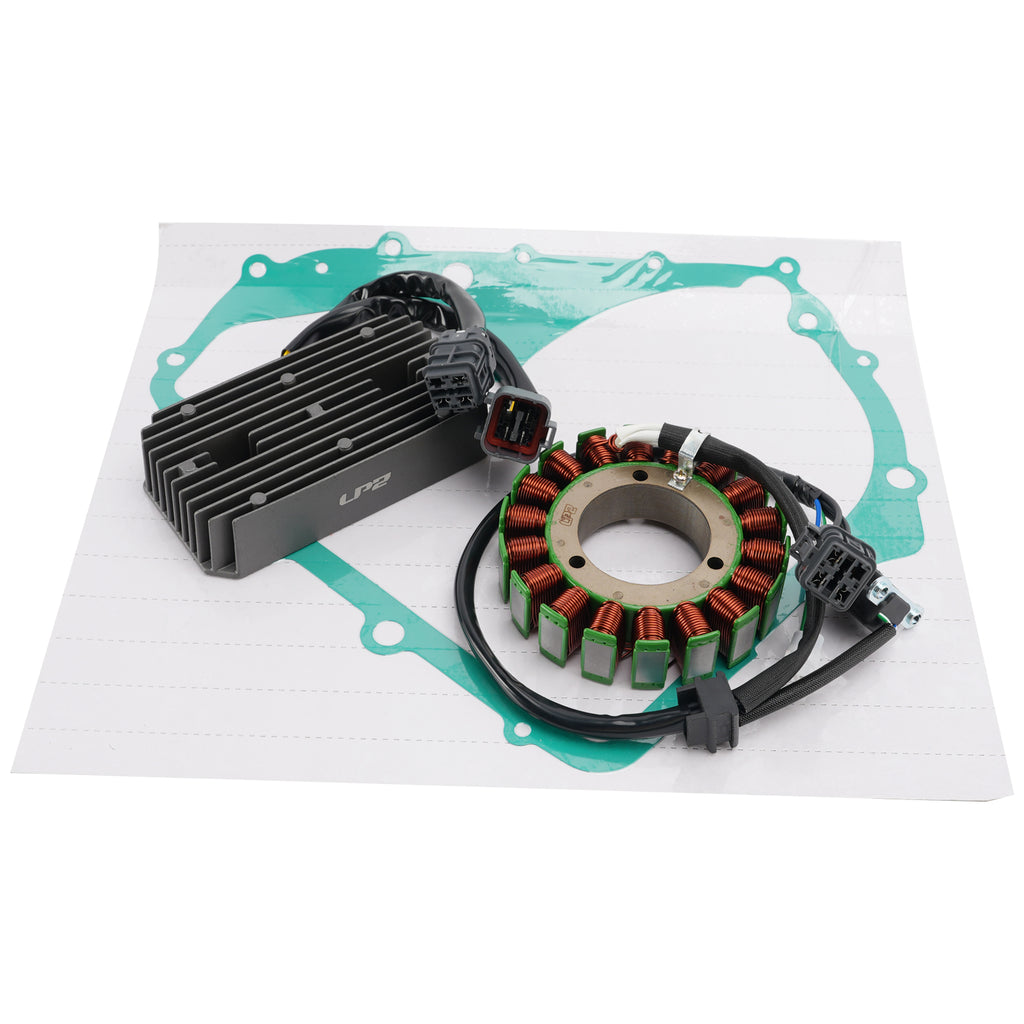

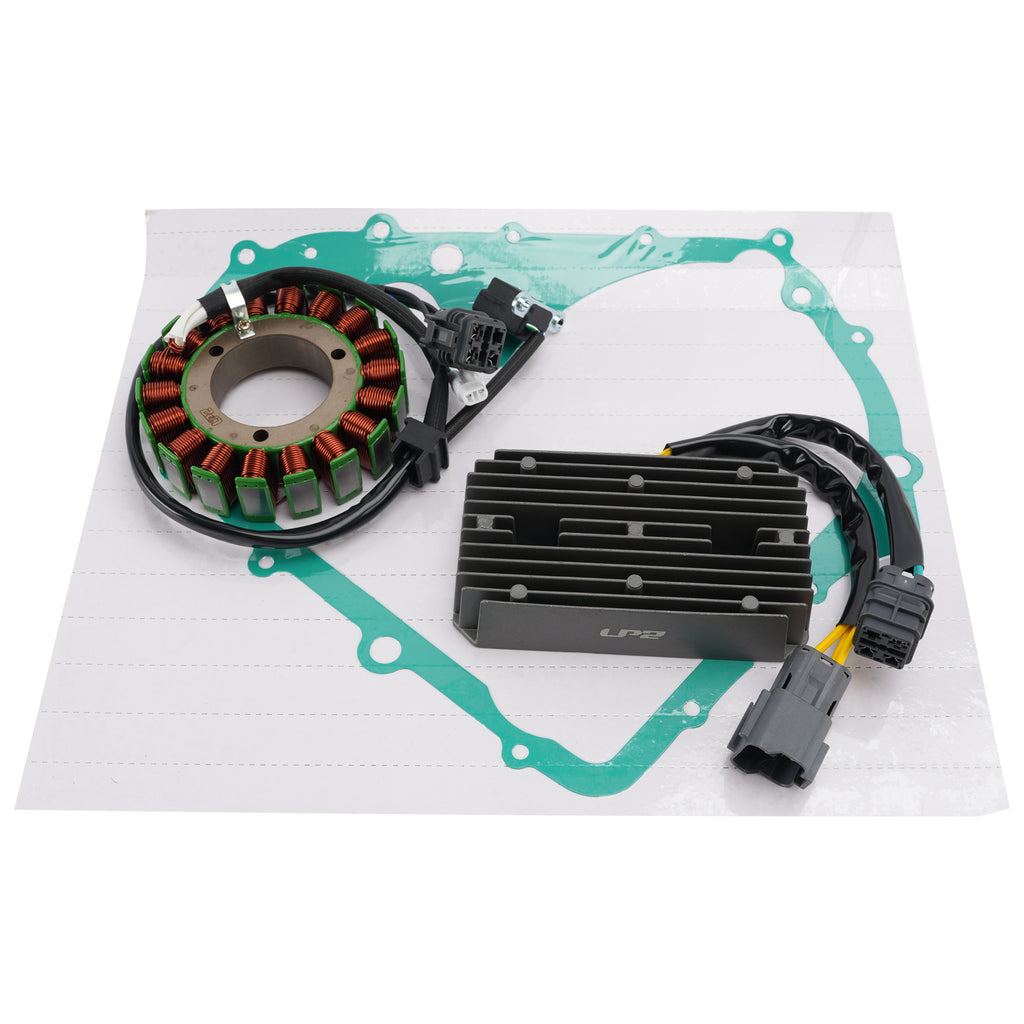

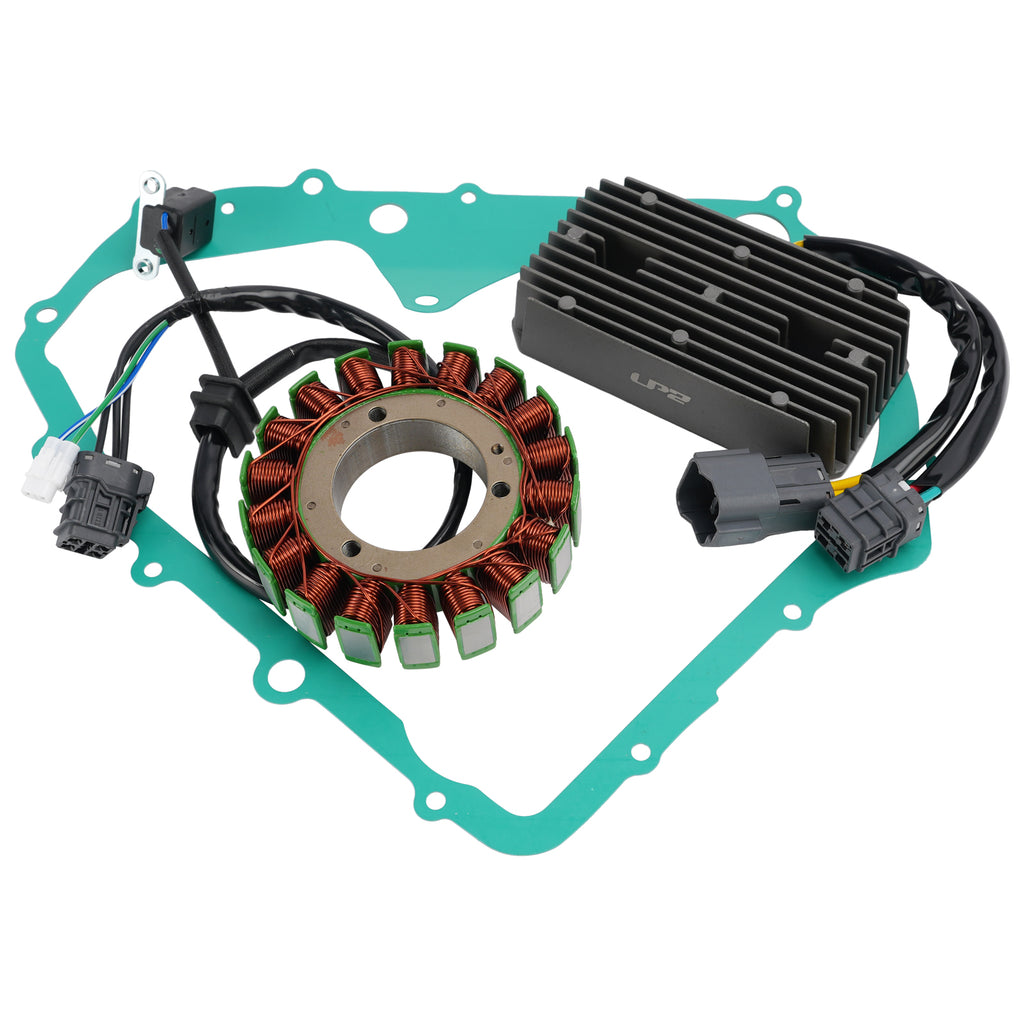

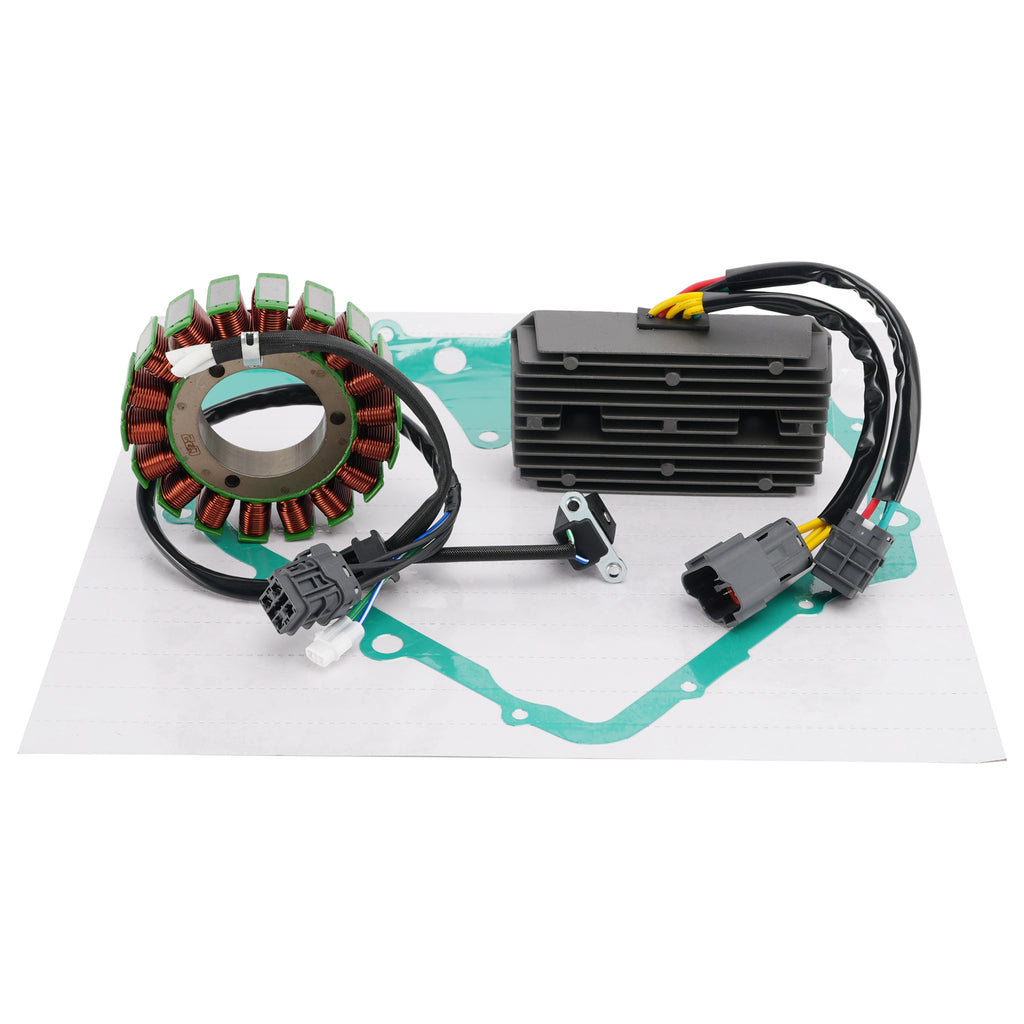

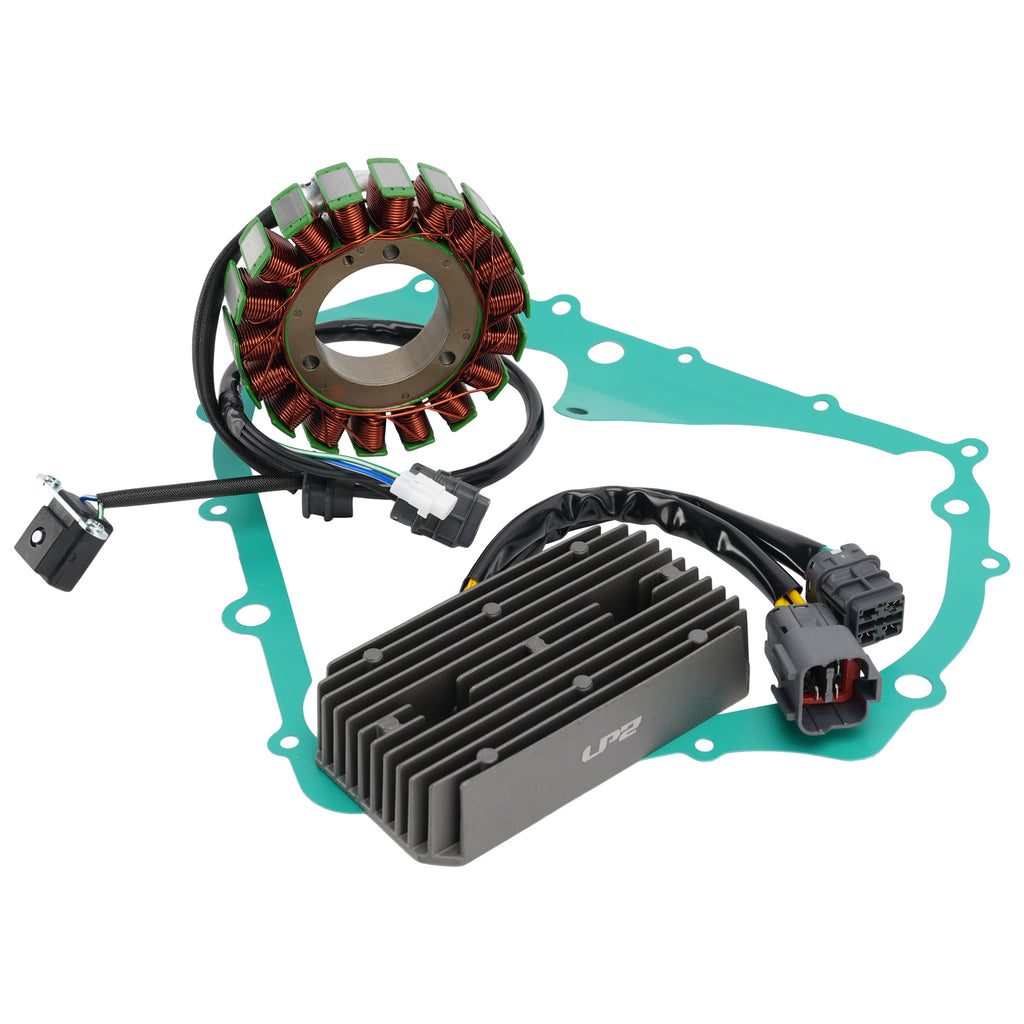

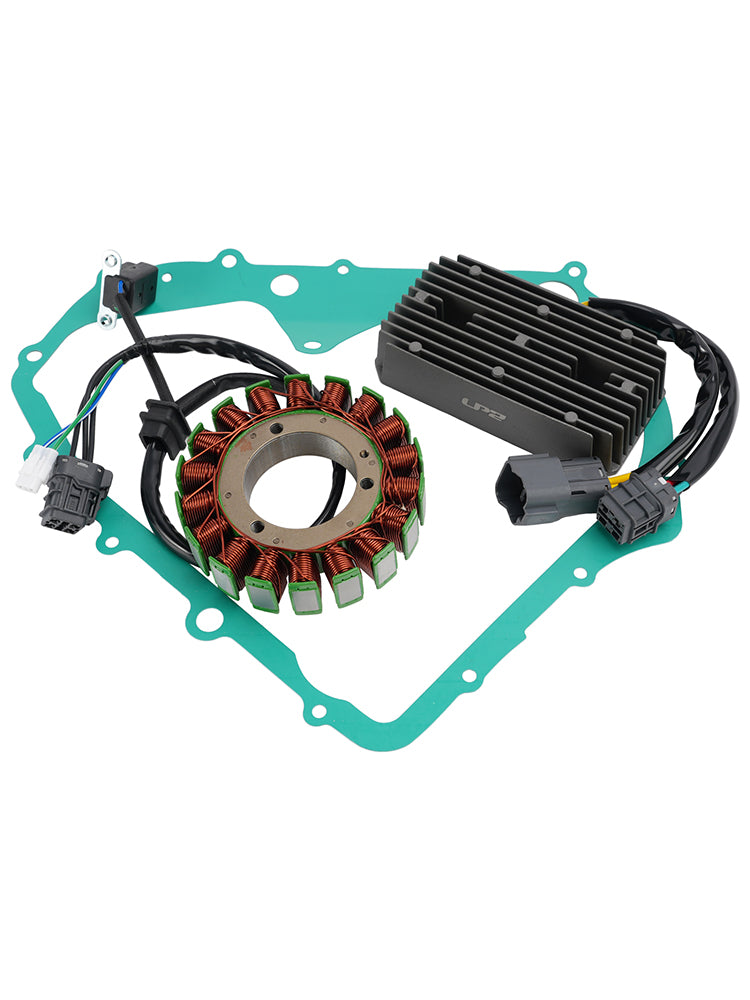

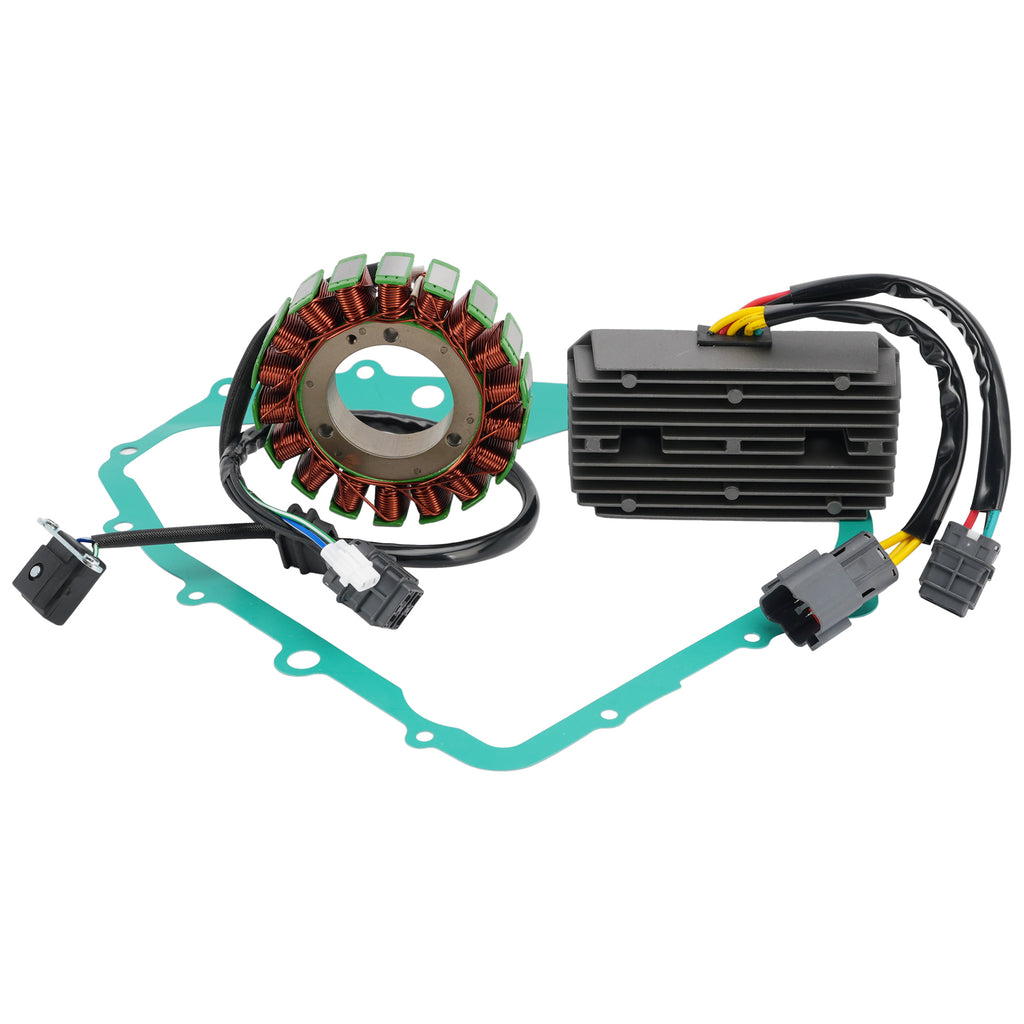

Scope of delivery:
1 x 115 mm generator stator
1 x 6-wire controller
1 x crankcase seal
(Delivery as pictured.)
A notice:
Before installing your new stator regulator rectifier:
Check the AC output voltage of the stator.
Replace all burnt or corroded connections on the stator and regulator/rectifier.
Check and repair any melted cables.
Use high-temperature dielectric grease on all connections.
Our stator/regulator may use a different cable color coding than your original part.
All cables are connected in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct replacement and should be used as such.
Always use threadlocker when screwing on the stator.
If our stator contains a pickup coil, please ensure the correct air gap during installation.
You will receive exactly what you see in the pictures. If in doubt, compare our product with your original part.
The product offered is an accessory or...This is a replacement part and therefore not an original part from the vehicle manufacturer. The vehicle manufacturer's name is used solely to identify the offered product as an accessory or replacement part, to clarify which vehicle it is suitable for.
